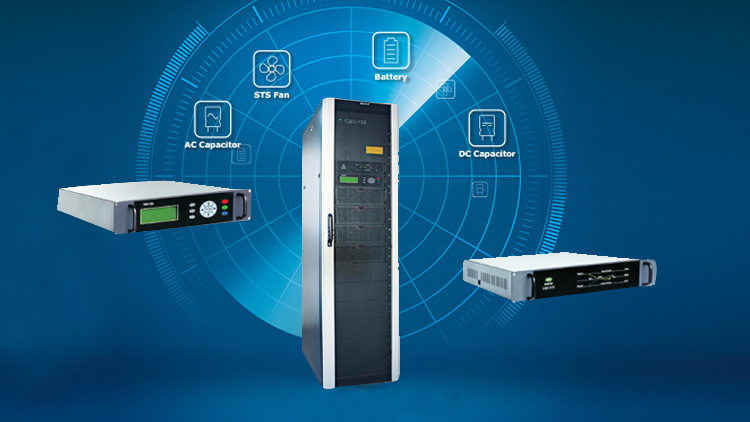

Modular Online UPS
Features :
- Low Heat Consumption
- No Pollution
- High Efficiency
- Energy Saving
- ++1
- Green Power Supply
Our Products | System type | MS-100 | MS-150 | MS-200 | MS-240 | MS-480 | |
| Mains input | Input mode | Three-phase four-line+ grounding line/ one phase two-line+ grounding line | ||||
| Input voltage | 380V/220V±20%, 400V/230V±20%, 415V/240V±20% | |||||
| Input frequency | 50Hz±10%, 60Hz±10% | |||||
| Power woke-in (Sec.) | 60secs | |||||
| THDI (%) | ＜<3% | |||||
| Input power factor | >0.99 | |||||
| Bypass input | Input voltage | 380V/220V±20%, 400V/230V±20%, 415V/240V±20% | ||||
| Input frequency tolerance | 50Hz±10%, 60Hz±10% | |||||
| DC input | Rated input voltage | ±384VDC | ||||
| input voltage tolerance | 345V~445V DC | |||||
| Battery charging | Charging current limited | yes | ||||
| Charging time | 10 hours ( 2 hours back up capacity) | |||||
| Stability of charging voltage | ±1% | |||||
| UPS power factor | 0.8 | |||||
| Output voltage | 380V/220V, 400V/230V, 415V/240V | |||||
| Output frequency | 50Hz±4%; 50Hz±0.2%(if the AC fails or the battery supply for output ) 60Hz±4%; 60Hz±0.2%(if the AC fails or the battery supply for output ) |
|||||
| Output voltage recovering time | 20ms（load (0～~100%）) | |||||
| AC output | Overload capacity | Operate 10 minutes with 125% load | ||||
| Transfer from mains to battery supply | 0ms | |||||
| Transfer from bypass to inverter supply | <1ms | |||||
| Peak factor | 3:1 | |||||
| Total input harmonics distortion THDI(%) | ≤<1%（ (linear load) ） ≤<3%（ (non-linear load) ） | |||||
| Overall efficiency | ≥>95%（ ( AC-AC）) | |||||
| Ambient temperature | -25 C℃～~60℃C | |||||
| operating temperature | -5C ~ ℃～40℃C | |||||
| Maximum operating altitude | ≤<1500m | |||||
| Operating environment | Relative humidity | ≤<93% non-cadency | ||||
| protection degree | IP30 | |||||
| Cooling | air cooling | |||||
| Applicable softy standards. | EN62040-1-1:2003 IEC60950-1:2001 | |||||
| Electromagnetic compatibility | EN62040-1-1:2003 IEC60950-1:2001 | |||||
| Acoustic noise | ≤<55DB | |||||
| Dimension of the cabinet (（H×W×D)）mm | 2000×600×800, 2000×1200×800, 2000×1800×800 | |||||
| Others | RS232/RS422 and 8 try contact | Standard | ||||
| SNMP | Standard | |||||
| Display | LCD/LED | |||||
| Module type | CM10 | CM15 | CM20 |
| Module capacity | 10KVA | 15KVA | 20KVA |
| Maximum system capacity | 100KVA | 150KVA | 200KVA/240KVA/480KVA |
| DC input | ±384V DC | ||
| Input/ output mode | 3/3, 3/1,1/3,1/1 | ||
| Dimension（H×W×D）mm | 133×482×465 | ||
| Weight （kg） | 16 kg | 18 kg | 20 kg |
| For chargeable module | 3KW battery power | 4KW battery power | 5KW battery power |
| Input power factor | ≥ 0.99 | ||
| Maximum heat dispassion | 300W | 450W | 600W |
| THDI (%) | ≤3% |
